EPOCH
12V & 36V Onboard Marine Lithium Battery Charger
12V & 36V Onboard Marine Lithium Battery Charger
Couldn't load pickup availability
sku: CHG-2BAY-12V36V

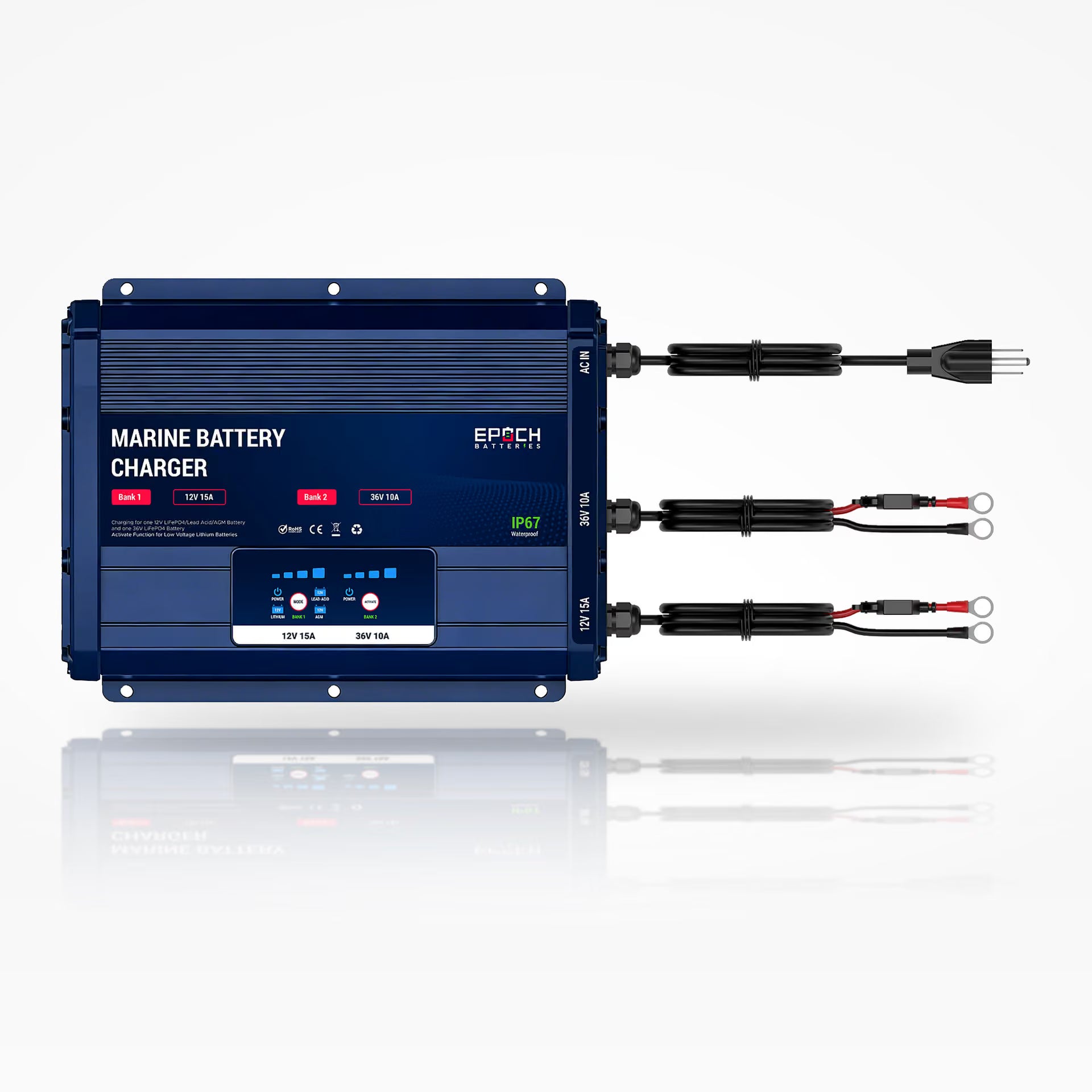

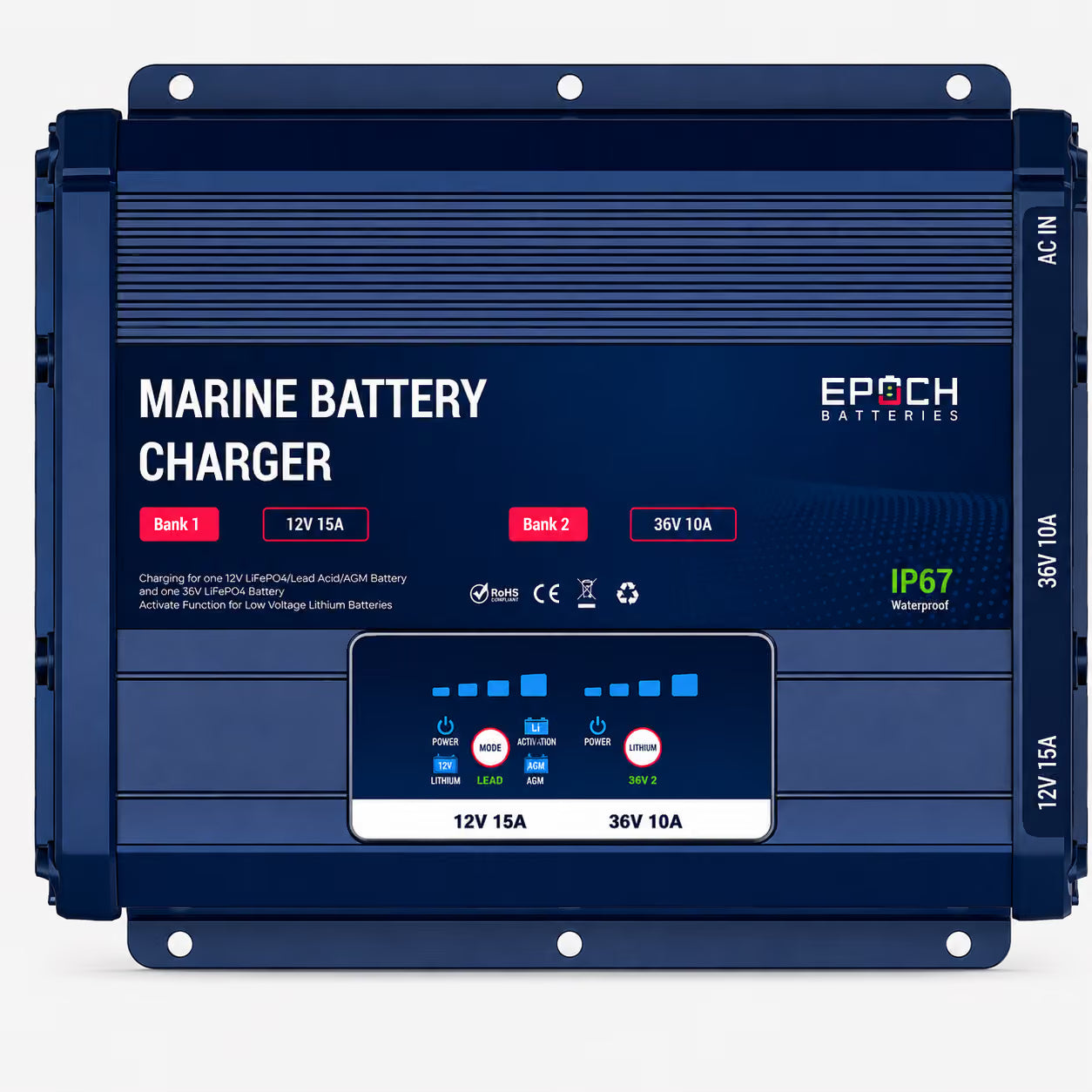

Epoch 12V & 36V 2-Bank Onboard Marine Battery Charger
One Charger. Two Batteries. One Plug.
Charge your 12V cranking or house battery and 36V LiFePO₄ trolling motor battery with one permanently mounted onboard charger.

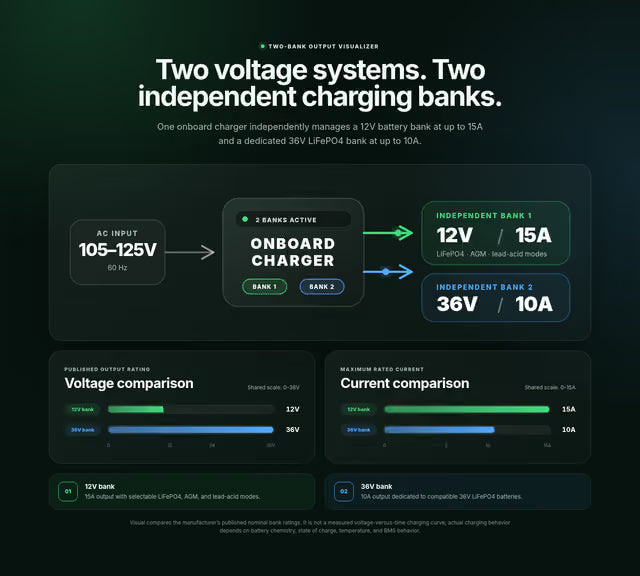

The Epoch 2-Bank Charger features two independent charging outputs:
-
12V / 15A
-
36V / 10A
Simply plug the charger into shore power and both batteries can charge at the same time.
Key Features
⚡ Two Independent Charging Banks
Charge one 12V battery and one 36V LiFePO₄ battery simultaneously.
🔋 Selectable 12V Battery Profiles
The 12V bank can be configured for LiFePO₄, AGM, or lead-acid batteries.
🚤 Dedicated 36V LiFePO₄ Charging
The second bank provides 36V / 10A charging for a compatible 36V LiFePO₄ battery.
🌧️ IP67 Waterproof Construction
Built for demanding marine environments with an epoxy-filled enclosure and waterproof design.

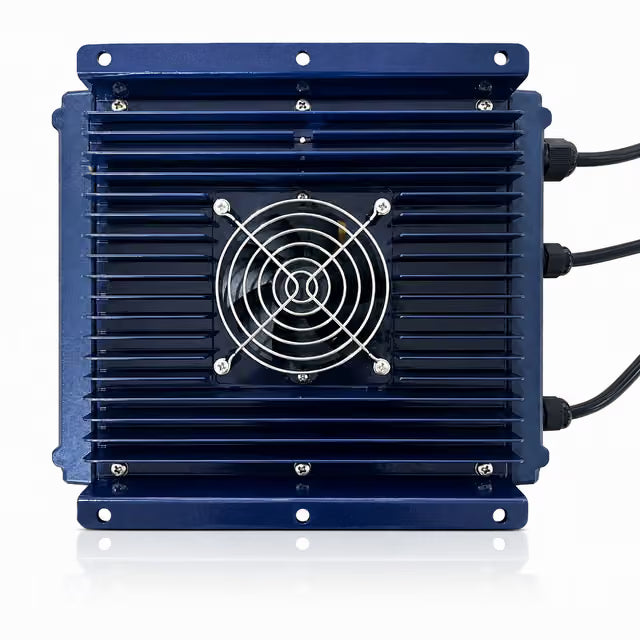

🌬️ Active Cooling
An aluminum housing, cooling plate, and temperature-controlled waterproof fan help manage heat during charging.
🔌 Permanent Onboard Installation
Pre-wired M8 ring terminals provide secure, permanent battery connections.
🔋 Lithium BMS Activation
Compatible sleeping lithium batteries can be activated directly through the charger.
🛡️ Built-In Protection
Protection against reverse polarity, short circuits, overheating, overcharging, and no-load conditions.
Perfect For Mixed-Voltage Boats
Instead of carrying and connecting separate chargers, the Epoch 2-Bank Charger allows you to charge both battery systems from a single AC connection.
Simple Installation
Permanently mount the charger in a protected location, connect the pre-wired ring terminals to the appropriate batteries, select your 12V battery type, and plug the charger into a properly grounded AC outlet.
Both charging banks operate independently, so the 12V and 36V batteries can charge simultaneously.

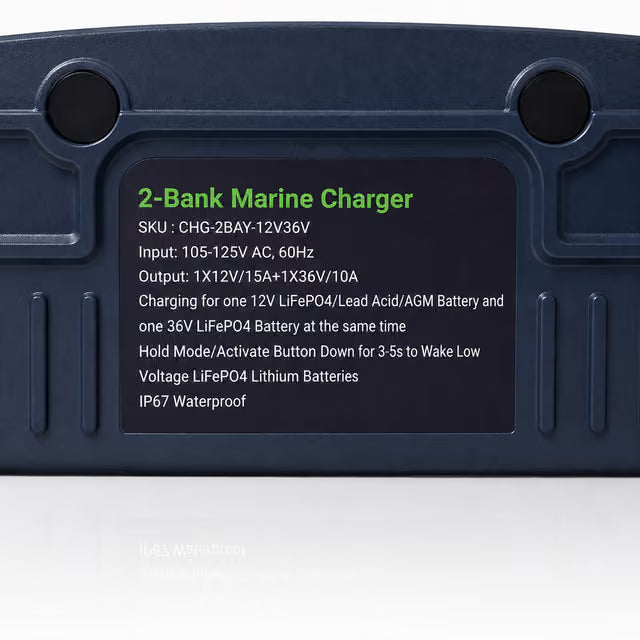

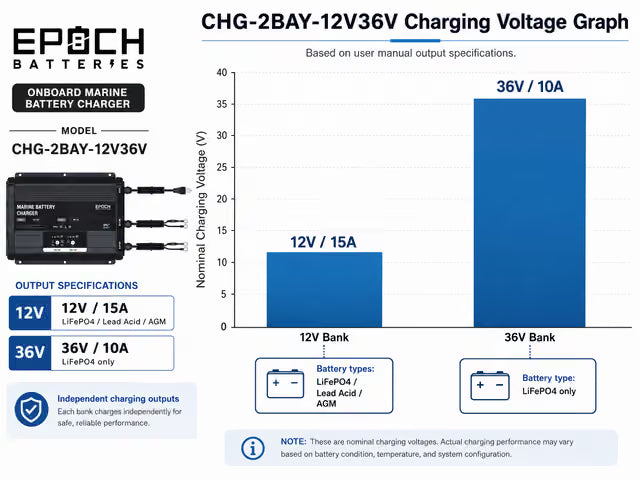

Specifications
-
Model: CHG-2BAY-12V36V
-
Charging Banks: 2 Independent Banks
-
12V Output: 15A
-
36V Output: 10A
-
12V Battery Compatibility: LiFePO₄, AGM, or Lead-Acid
-
36V Battery Compatibility: Compatible 36V LiFePO₄ Batteries
-
AC Input: 105–125VAC / 60Hz
-
Ingress Protection: IP67
-
Battery Connections: M8 Ring Terminals
-
Cooling: Temperature-Controlled Waterproof Fan
-
Dimensions: 10.79 × 9.65 × 3.90 inches
Need Help Choosing a Charger?
Not sure if this charger is compatible with your battery setup? Contact Direct Current Boatworks—we're happy to help you find the right charging solution for your boat.
