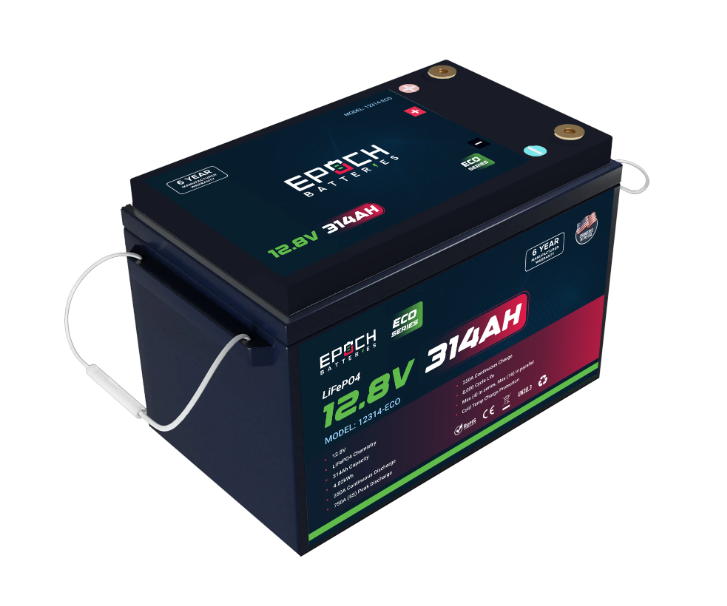

Epoch 12V 314Ah LiFePO4 Deep Cycle Battery

Key Features:

• LiFePO4 Chemistry – safe, stable, deep cycle performance

• Built-in Smart BMS with 20+ safety protections

• Low-temperature charge protection

• Overcharge, over-discharge, overcurrent, and short-circuit protection

• High/low temperature disconnects

• Supports up to 4 in series (48V) or 16 in parallel (64.3 kWh)

• 8,000+ cycle life, maintenance-free

• 6-Year Manufacturer Warranty

Specifications:

• Capacity: 314Ah

• Voltage: 12.8V nominal (10.0–14.6V operating range)

• Max Charge Current: 250A

• Max Continuous Discharge: 250A

• Peak Discharge: 750A (5 sec)

• Dimensions: L 15.5” × W 7.63” × H 10.5”

• Weight: 57 lbs

• Configuration: 4S1P

• Temperature Ranges:

  • Charge: 32°F – 131°F (0°C – 55°C)

  • Discharge: -4°F – 140°F (-20°C – 60°C)

  • Storage: 32°F – 95°F (0°C – 35°C)

Charging Requirements:

• Bulk/Absorption: 14.2V – 14.6V

• Absorption Time: ~30 minutes (for 200Ah parallel)

• Float: 13.4V – 13.8V

• Equalization: Disabled (14.4V if required)

• Temperature Compensation: Disabled

• Recommended Charge Rate: 50% of battery/bank capacity

⚡ Note: Ensure your charger can be programmed for the above charging profile. This applies to all charging components: converters, inverter/chargers, solar controllers, and DC-DC chargers.
