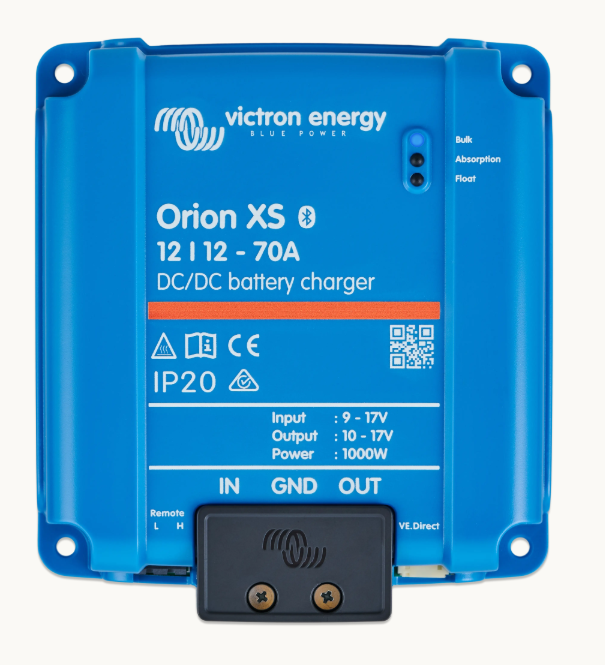

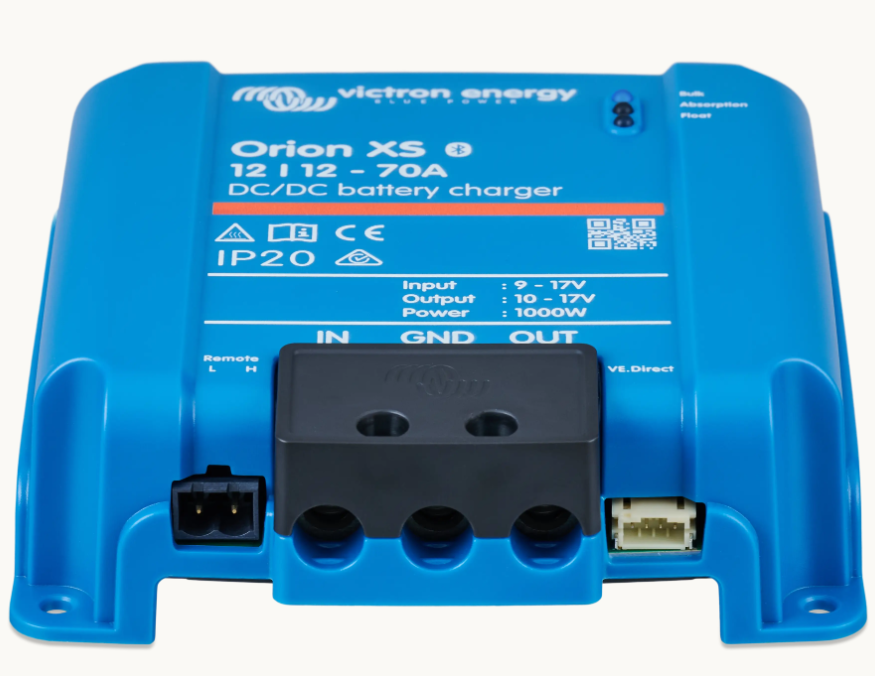

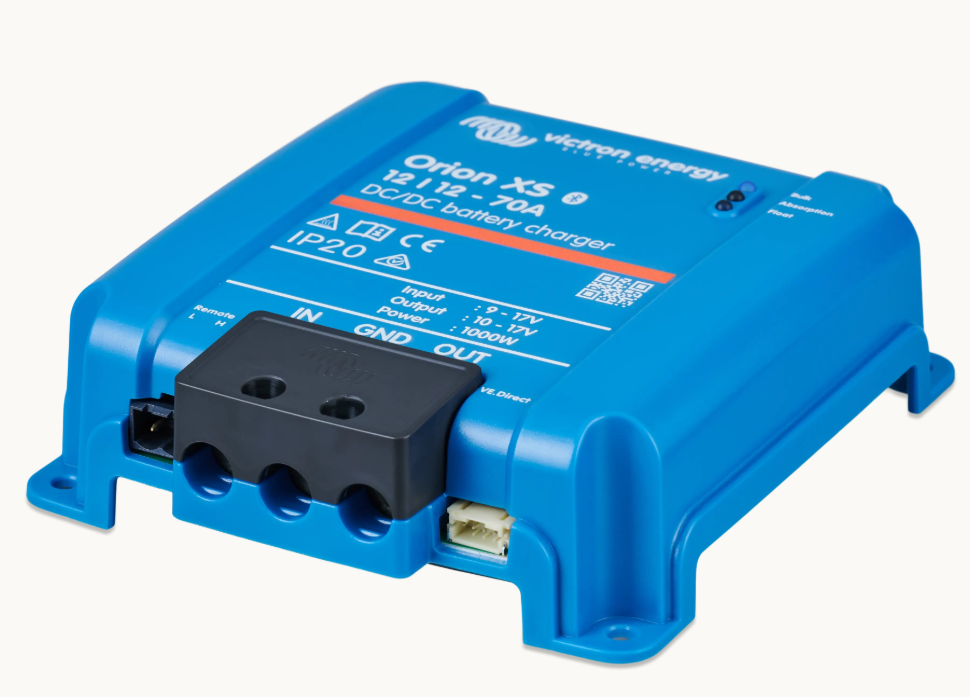

Victron Energy Orion XS 12/12-70A DC-DC Battery Charger

Victron Energy Orion XS 12/12-70A DC-DC Battery Charger

More Charging Power. Compact Design. Built for High-Demand Systems.

The Victron Energy Orion XS 12/12-70A is a powerful and highly efficient DC-to-DC battery charger designed to charge your house battery bank while your engine is running.

With up to 70 amps of fully adjustable charging current and 1,000 watts of continuous output power, the Orion XS 70A is an excellent solution for larger battery banks and high-demand marine electrical systems.

Whether you're upgrading to a LiFePO₄ house bank or looking for a smarter and more controlled way to charge your batteries from your engine's alternator, the Orion XS provides programmable charging profiles, smart alternator compatibility, Bluetooth monitoring, and the advanced system integration Victron Energy is known for.

Perfect for Marine LiFePO₄ Upgrades

A DC-to-DC charger provides a controlled connection between your engine's starting battery/alternator system and your house battery bank.

Rather than directly connecting the two battery banks, the Orion XS regulates charging current and voltage to provide the appropriate charging profile for your house battery while helping protect the starting battery and alternator from excessive demand.

The charging current can be adjusted from 1–70 amps, allowing the Orion XS to be configured around your alternator's available output and your battery bank's charging requirements.

Key Features

⚡ Up to 70A of Adjustable Charging Current

The Orion XS 70A provides up to 70 amps of charging current, adjustable in 0.1A increments through the VictronConnect app.

This allows you to tailor the charging system to your alternator's available output and your battery bank's requirements.

🌬️ Built-In Active Cooling

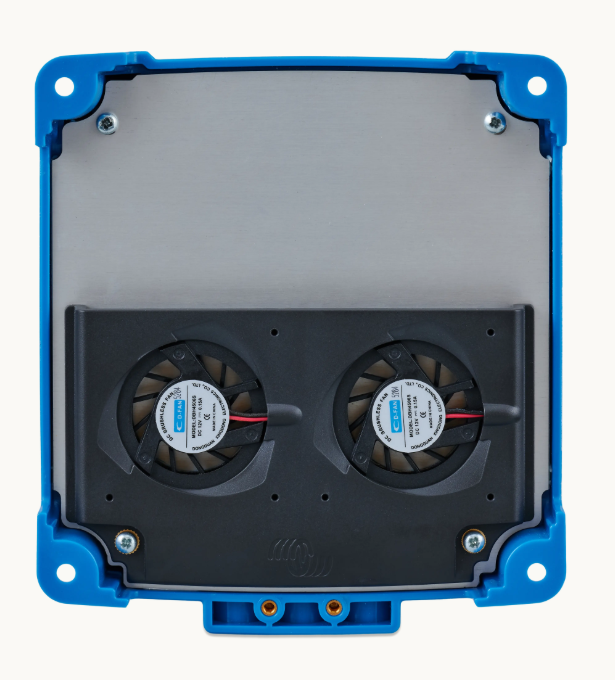

The Orion XS 70A features two integrated, low-noise blower fans mounted on the bottom of the unit to provide active cooling.

This active cooling system helps the charger maintain high-output performance in demanding installations and tight spaces where heat management is critical.

With adequate airflow and proper installation, the Orion XS 70A is capable of delivering its full 1,000W rated output up to 104°F (40°C) before thermal derating begins.

🔋 Fully Programmable Charging Profiles

The Orion XS offers fully programmable charging settings and multiple preset battery profiles, making it suitable for a wide range of battery chemistries, including:

• LiFePO₄
• AGM
• Gel
• Flooded lead-acid

Charging voltage and current can be configured directly through the VictronConnect app.

🚤 Smart Alternator Compatible

Built-in engine running detection allows the Orion XS to recognize when the engine is running and activate charging when alternator power is available.

This makes the charger compatible with many modern smart alternator systems while eliminating the need for an external engine-running sensor in many installations.

📱 Bluetooth Smart Monitoring & Configuration

Built-in Bluetooth allows you to monitor and configure the Orion XS directly through the VictronConnect app.

Adjust charging settings, monitor performance, view system information, and update firmware directly from a compatible smartphone or tablet.

🔌 VE.Direct & DVCC Compatible

The Orion XS can be integrated into a larger Victron Energy system through its VE.Direct connection.

When used with compatible Victron GX equipment, the Orion XS supports advanced monitoring, diagnostics, and DVCC system-wide charging control.

⚡ Up to 98.5% Efficiency

Highly efficient power conversion helps maximize the energy available from your alternator while reducing wasted energy and heat.

➕ Parallel Operation

Multiple Orion XS units can be connected in parallel to increase available charging capacity for larger battery banks and higher-demand electrical systems.

🛡️ Comprehensive Electronic Protection

The Orion XS includes built-in protection against:

• Overload
• Short circuit
• Excessive temperature
• Input undervoltage

The charger can automatically reduce output when necessary to protect itself from excessive temperatures.

Technical Highlights

• Input Voltage Range: 9–17V
• Output Voltage Range: 10–17V
• Adjustable Charging Current: 1–70A
• Continuous Output Power: 1,000W
• Maximum Efficiency: 98.5%
• Bluetooth: Built-in VictronConnect compatibility
• VE.Smart Networking: Yes
• VE.Direct: Yes
• DVCC Compatible: Yes
• Remote On/Off: Yes
• Active Cooling: Two integrated low-noise blower fans
• Maximum Cable Size: 4 AWG
• Dimensions: 5.4 × 4.85 × 1.6 inches
• Weight: 0.74 lbs

Important Installation Note

The Orion XS 12/12-70A is not waterproof and has an overall IP20 rating, making it suitable for installation in a dry, protected location. Its internal power electronics are enclosed to IP65, but the complete charger should not be exposed to water or installed where it may get wet.

Proper ventilation is also important. The active cooling fans require adequate clearance and airflow around the unit for maximum performance.

Need Help Designing Your System?

Not sure whether the Orion XS 70A is the right size for your alternator or battery bank?

Direct Current Boatworks is happy to help you choose and configure the right charging system for your boat.
